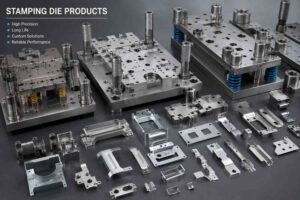

Why Punch & Die Tolerances Define Everything Downstream
In metal stamping, a perfect part and a rejected part can be separated by a distance that is measured in micrometers. The accuracy tools at the heart of this equation are Stamping Dies– and the tolerances that their punches and dies are cut to dictate not only the quality of part, but scrap rates, tool life and the press load, and long-term production economics. Even a clearance error of 0.01mm in a high speed progressive die with a 400 strokes/min can create burr heights that are above customer specification in 50000 hits – virtually losing 40 percent of cutting life before the initial scheduled maintenance.
The Tolerance Hierarchy in Stamping Dies: Three Distinct Grades
All tolerance specifications are not created equal. The industry identifies three functional grades and consumers that mix them up always either pay too much money to get precision they do not need or specify parts that do not work in the field:
- Commercial Grade ( ±0.050mm and greater): This is applicable in non-critical blanking processes, mild steel with moderate levels of production and where the burr height of less than 0.15mm can be tolerated. The machine rates are reduced; the turnaround times are less. All clearances are normally 5-10% of material thickness.
- Precision Grade (0.013mm to 0.025mm): This grade is needed in high volume progressive dies, automotive body parts, electrical connector terminals, and components that have tight hole-to-edge relationships. Needs wire EDM and surface grinding to sub-micron finishes. Standard clearances are 3-5% material thickness (t).
- Ultra-Precision / Tight Tolerance Stamping (±0.003mm – ±0.005mm): The silicon steel lamination stack, medical micro-stamping and MEMS parts domain. Needs a grinder with temperature control, high-magnification optical measurements, and die components made of powder metallurgy tool steels (e.g., ASP23, HAP72). SSPrecision works in this level within qualified OEM programs.
Industry Benchmark: The Precision Metalforming Association (PMA) 2023 State of the Industry Report states that, 34% of stamping die failures can be directly linked to inappropriate clearance specification – not worn tooling or material defects.. The most leverage tolerance decision a buyer can make is to get clearance at the design stage.
Stamping Tolerance Chart: Commercial vs. Precision vs. SSPrecision Grade
The following stamping tolerance chart covers the ten most commercially specified features in punch and die sets. Reference standards include ISO 2768, DIN 6935, JIS B0401, and AIDA/Schuler industry guidelines. SSPrecision achievable values reflect production capability validated by CMM measurement records across active OEM programs:
| Feature / Tolerance Type | Commercial Grade (±mm) | Precision Grade (±mm) | SSPrecision Achievable | Reference Std. |
| Punch Diameter | ±0.050 | ±0.013 | ±0.003 – ±0.005 | ISO 2768-m |
| Die Opening Size | ±0.050 | ±0.013 | ±0.003 – ±0.005 | ISO 2768-f |
| Punch-to-Die Clearance | 5–10% t | 3–5% t | 1–3% t | AIDA / Schuler |
| Straightness (Punch Body) | ±0.025 | ±0.008 | ±0.002 – ±0.004 | DIN 6935 |
| Concentricity / Runout | ±0.030 | ±0.010 | ±0.002 – ±0.003 | ISO 1101 |
| Surface Finish (Ra μm) | 1.6 Ra | 0.8 Ra | 0.2 – 0.4 Ra | ISO 1302 |
| Blanked Hole Diameter | ±0.080 | ±0.025 | ±0.005 – ±0.010 | SME Handbook |
| Formed Feature Height | ±0.150 | ±0.050 | ±0.015 – ±0.025 | ISO 2768-c |
| Flatness (Die Plate) | ±0.050 | ±0.015 | ±0.003 – ±0.005 | ISO 2768-f |
| Pitch / Center Distance | ±0.100 | ±0.025 | ±0.005 – ±0.010 | JIS B0401 |
* t = material thickness. Clearance values express percentage of t per side.
Clearance: The Single Most Misunderstood Stamping Die Variable
The most significant tolerance in any blanking or piercing operation is punch-to-die clearance: the difference between the punch O.D. and the opening in the die. It is also the variable buyers most often underspecify, misjudge or leave to the discretion of the die maker.
The appropriate clearance is in percentage of material thickness on each side. Excessively tight and the punch loads too hard, producing heat and accelerating wear – a -0.003mm variation in the best clearance on a 0.2mm silicon steel punch can decrease the life of the tool by 35-50%. Excessively loose, and secondary fracture zones become wider, burr height greater and dimensional accuracy is lost. The practical clearance margin on most materials is less than what buyers anticipate:
- Mild Steel (SPCC, 1.0mm): Optimal clearance = 0.050 – 0.080mm per side (5–8%t). Variation of +0.015mm out of this window doubles the burr height in 100,000 hits.
- Stainless Steel 304 (1.5mm): Optimal clearance = 0.090 – 0.150mm per side (6–10%t). Clearing uniformity is important to work-hardening when cutting – out-of-round punches leave burr uneven after 50,000 hits.
- Silicon Steel EI Lamination (0.35mm): Clearance = ±0.003mm to nominal. The change in stack height of assembled transformer cores is directly proportional to per-punch diameter variation at this scale.
SSPrecision Engineering Note: Each punch and die set delivered by SSPrecision has a dimensional report of the measured clearance in each of four quadrants around the punch perimeter.. Average good clearance consistency throughout 2024 production: ±0.0015mm – confirmed by Zeiss CMM with 0.0001mm resolution.
Material-Specific Clearance, Die Life & Stamping Die Precision Requirements
Clearance targets and expected tool life vary significantly by material. The following data is compiled from SSPrecision production records, AIDA press manufacturer guidelines, and SME Stamping Handbook benchmarks. Die life estimates assume proper lubrication, scheduled maintenance, and punch coating where noted:
| Material | Thickness Range (mm) | Recommended Clearance | Expected Die Life (Hits) | Precision Notes |
| Mild Steel (SPCC) | 0.8 – 2.0 | 5 – 8% t | 500,000 – 1,000,000 | Burr ht. <0.05t after 200k hits |
| High-Strength Steel (DP780) | 1.0 – 3.0 | 8 – 12% t | 200,000 – 500,000 | Monitor clearance every 100k hits |
| Stainless Steel (304/316) | 0.5 – 3.0 | 6 – 10% t | 150,000 – 300,000 | Coated punch recommended (TiCN) |
| Aluminum (1050/5052) | 0.5 – 3.0 | 3 – 6% t | 1,000,000+ | Low force; galling risk at <3%t |
| Copper / Brass | 0.3 – 2.0 | 4 – 6% t | 800,000 – 1,500,000 | Polish die surface to Ra 0.4 max |
| Silicon Steel (EI Lamination) | 0.20 – 0.50 | 4 – 6% t | 300,000 – 600,000 | ±0.003mm punch critical for stacking |
| Titanium (Grade 2) | 0.5 – 2.0 | 10 – 14% t | 80,000 – 150,000 | Cryogenic tooling extends life 2–3× |
Case Study: EV Motor Lamination Stamping Dies at ±0.003mm
In Q3 2023, an automotive Tier 1 supplier in Europe had awarded a contract to SSPrecision to fabricate a 48-station progressive die set of silicon steel rotor and stator laminations – 0.35mm-thick non-oriented silicon steel, 48 laminations per stack, with a production goal of 120,000 assemblies per year
Specification was very strict by commercial standards: tolerance in punch diameter was ±0.003mm, tolerance in die opening was ±0.003mm, uniformity of clearance was ±0.002mm per side, surface finish was 0.2 on all cutting faces, and variation in stack height in the finished lamination assembly was not more than ±0.08mm across the entire stack of 48 layers.
The manufacturing method used by SSPrecision in this program entailed five main aspects which included: (1) PM tool steel punches (HAP72, 68 HRC) precision-grounded on a Studer S33 CNC cylindrical grinder; (2) die openings created by wire EDM using 0.1mm brass wire and with positional accuracy of 0.0005mm; (3) individual punch diameter measurement on a Zeiss Contura CMM before assembly; (4) 100% clearance verification at 4-point quadrant measurement post-assembly; and (5) a trial run of 5,000 hits with mid-run dimensional audit before full production approval.
12 months of production results: 0 dimensional non-conformances on lamination assemblies, 680,000 hits on the die reduced the burr height to 0.012mm (spec: 0.020mm) -38% of the 800,000 hits target set by the customer. The program is still under operation.
What Buyers Should Specify — and What SSPrecision Will Verify
Optimal buyer-supplier interactions start with fully specified documents. Quote engineers at SSPrecision are often asked questions that give material and part geometry, but do not include the tolerance information required to give the job an accurate price. A lost clearance callout is not neutral, but leads to a quote being built based on presumed commercial grade (potentially not functional) or a clarification request that holds up the program.
In each case of a punch and die query SSPrecision must and does confirm the following specification items:
- Punch diameter (nominal + bilateral tolerance in mm, not simply preciseness or tightness)
- Die opening size and tolerance – independent of punch diameter.
- Percentage of material thickness required on each side clearance OR absolute value of clearance in mm.
- Surface finish (Ra value in μm) on cutting faces, body, and shank
- Tool steel grade or hardness range (HRC) — SSPrecision recommends by application if unspecified
- Expected production volume and required die life in hits before first regrind
SSPrecision returns every completed die set with a full dimensional report: measured punch diameter, die opening at 4 reference points, clearance at 4 quadrants, surface roughness trace, and hardness test result. This documentation package is standard — not an optional add-on — because buyers sourcing precision die components need a verifiable baseline for incoming inspection and tool life tracking.
Engineering-Grade Precision. Production-Proven Results. SSPrecision manufactures punch and die sets to tolerances as tight as ±0.003mm, supported by CMM-verified dimensional reports on every shipment. Whether your program demands commercial-grade blanking dies or ultra-precision lamination tooling for EV motors and medical devices, SSPrecision’s engineering team provides specification review, material selection, and production capability documentation before first article. Visit ssprecision.com.cn to submit a drawing for review or request a technical consultation.
