The supplier faced a stark choice: scrap the existing tooling and source a new custom tooling supplier, or risk missing delivery commitments to their OEM customer. They chose the former—and began searching for a tooling manufacturer Dongguan could deliver a robust, high-precision die that would eliminate defects, extend tool life, and restore production throughput. They found SSPrecision.
The Solution: Engineered for Performance, Built for Scale
SSPrecision (SSP) —a Dongguan-based custom tooling supplier since 2008—approached the challenge with a comprehensive engineering review. Operating from a 9,000 m² ISO 9001:2015 and IATF 16949 certified facility, SSPrecision’s engineering team conducted a full Design for Manufacturability (DFM) analysis on the EV connector housing—evaluating part geometry, material behavior, and the supplier’s production volumes to recommend an optimized die configuration.
The SSPrecision Approach: Four Key Interventions as a tooling manufacturer
| Intervention | SSPrecision Implementation | Outcome |
| 1. Strip Layout Optimization | Redesigned from 61% to 78% material utilization | Reduced material waste and per-part cost |
| 2. Tool Steel Upgrade | D2 tool steel with vacuum hardening and PVD coating | Extended tool life from 500K to 2M+ cycles |
| 3. Precision Clearance Engineering | Optimized punch-to-die clearances for EV-grade copper alloy | Eliminated burr formation at critical edges |
| 4. In-Die Sensor Integration | Installed real-time SPC monitoring for dimensional drift | Detected deviations before defects occurred |
The design phase was critical. SSPrecision’s engineers ran advanced CAE simulation of metal flow and springback to optimize station sequencing, ensuring the part would not distort as it progressed through the die. The strip layout was refined from the supplier’s previous configuration—increasing material utilization from 61% to 78% and significantly reducing waste.
Tool steel selection was another high-impact decision. The previous die had used standard tool steel without adequate hardening. SSPrecision specified D2 tool steel, vacuum-hardened to 58–62 HRC, with PVD coating for wear resistance. The combination delivers documented tool life exceeding 2 million cycles.
Precision clearances were engineered for the specific material—an EV-grade copper alloy with tight conductivity requirements. SSPrecision’s machining capability of ±0.002 mm on die components ensured that punch-to-die clearances were held to micron-level accuracy, eliminating the burr formation that had plagued the previous tool. Every component was verified on in-house CMM (Coordinate Measuring Machine) with full measurement traceability.
Finally, SSPrecision integrated in-die sensors and SPC monitoring into the tool—enabling real-time detection of dimensional drift before parts went out of spec. This predictive approach prevents scrap rather than merely detecting it.
The Result: Measurable Impact on the Production Floor
The new SSPrecision progressive die was installed and validated within the supplier’s production line. The results were immediate and measurable:
| Metric | Before (Previous Die) | After (SSPrecision Die) | Improvement |
| Scrap Rate | 12% | <1% | 92% reduction |
| Tool Life | 500,000 cycles | 2,000,000+ cycles | 4x increase |
| Burr Formation | Present at critical edges | Eliminated | 100% elimination |
| Dimensional Drift | ±0.025 mm over run | ±0.005 mm consistent | 5x improvement |
| Unplanned Downtime | 3-5 days per repair | <1 day per year | 95% reduction |
| Material Utilization | 61% | 78% | 28% less waste |
The SSPrecision die now produces consistent, zero-defect parts across every production run. The supplier has achieved full IATF 16949 compliance for their EV battery program, with PPAP Level 3 documentation provided by SSPrecision. Scrap-related material costs have been virtually eliminated, and unplanned downtime has dropped to less than one day annually—restoring production throughput and ensuring on-time delivery to their OEM customer.
Beyond the immediate production metrics, the supplier gained a strategic advantage. SSPrecision’s IATF 16949:2016 certification—the automotive industry’s gold standard for quality management—provided the regulatory documentation required for their EV supply chain audits. The full material traceability and CMM dimensional reports satisfied their quality auditors. And with 99% on-time delivery maintained through disciplined production scheduling, they now have a reliable supply chain partner for future programs.
Why SSPrecision for Custom Tooling Supply?
Who We Are

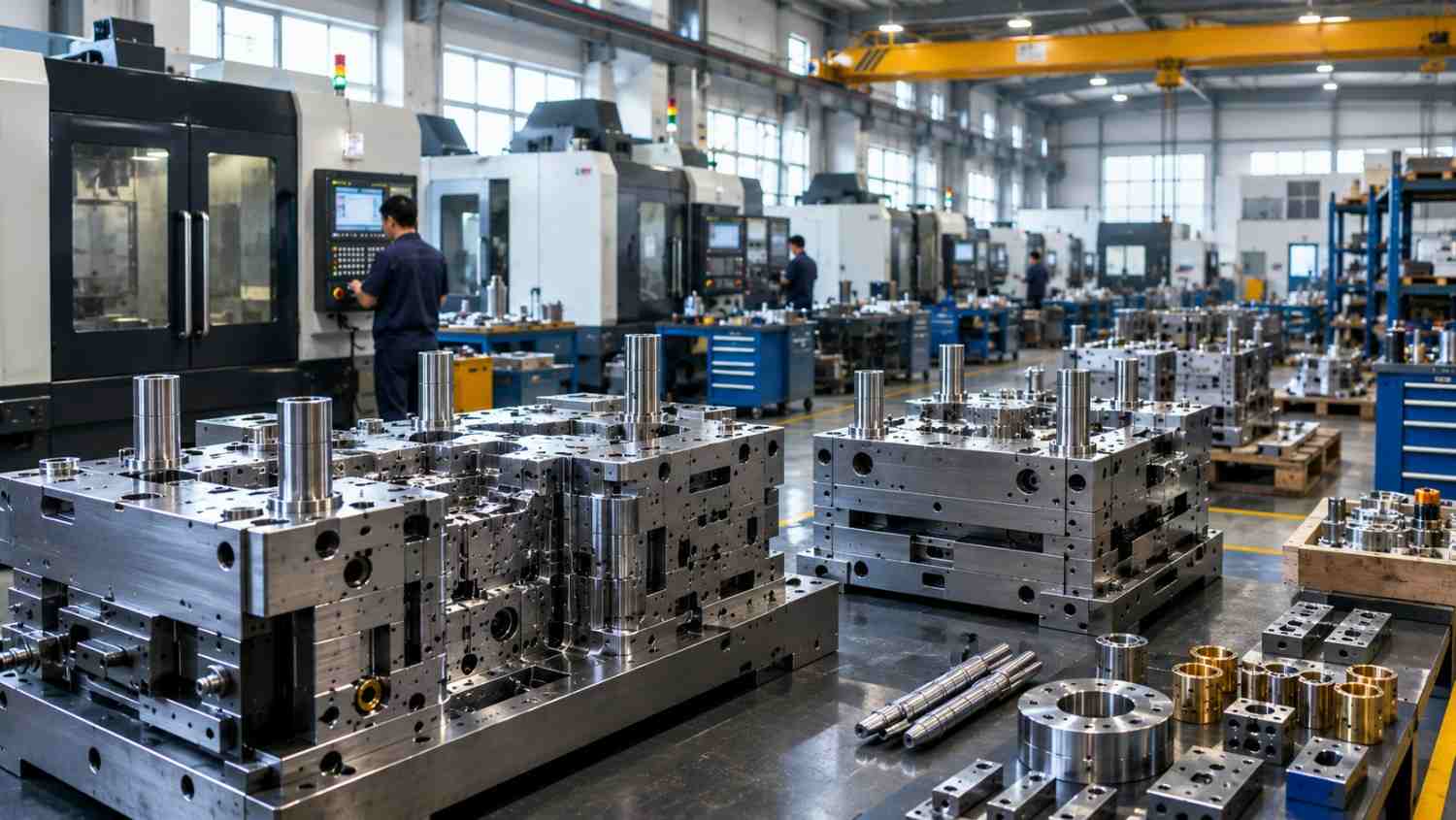

SSPrecision—Dongguan Shuangshun Precision Tooling Co., Ltd.—was founded in 2008 in Dongguan, the heartland of China’s precision manufacturing industry. The company specializes in high-precision stamping dies, die parts, injection molds, and CNC machined components.
| Capability | SSPrecision Standard |
| Facility | 9,000 m² in Dongguan, China |
| Founded | 2008 |
| Precision Team | Dedicated engineering and machining professionals |
| Tolerance Capability | ±0.002 mm on die components |
| CNC Milled Parts | ±0.005 mm |
| Surface Finish | Ra 0.4 μm on ground surfaces |
| Tool Life | 2+ million cycles |
| On-Time Delivery | 99% |
| Global Reach | 50+ countries |
Certifications That Matter
- ISO 9001:2015 — Quality Management System
- IATF 16949:2016 — Automotive Quality Management
- CMM Dimensional Reports — Zeiss & Mitutoyo CMM with full measurement traceability
- SPC Statistical Process Control — Real-time monitoring on all critical machining features
- Material Certifications — Mill certs, RoHS, hardness & chemical composition reports
Our Integrated Capabilities
From tooling design through CMM-verified final inspection, every component is produced under one roof:
| Service | SSPrecision Capability |
| Tooling Design & DFM | In-house CAD/CAM engineering with Design for Manufacturability analysis |
| Progressive Stamping Dies | Multi-stage progressive and transfer dies for high-volume precision components |
| Injection Mold Making | Plastic injection molds for complex geometries and tight tolerances |
| Multi-Axis CNC Machining | 5-axis CNC milling and turning |
| Surface Treatment | Heat treatment, hard chrome, PVD coating, nitriding |
| Assembly & Die Try-Out | Full die assembly, press try-out, and first-article validation |
Industries Served
SSPrecision serves OEMs across 50+ countries in:
- Automotive / EV (IATF 16949 certified)
- Electronics
- Medical Devices
- Aerospace
- Industrial Machinery
SSP Is a Trusted Partner for tooling Manufacturing
SSP Precision is an ISO 9001 & IATF 16949 certified manufacturer delivering end-to-end precision solutions—from DFM engineering and rapid prototyping to high-volume production—for the automotive, medical, electronics, aerospace, and industrial sectors. We handle every stage in-house to manufacture the tooling that makes your parts and the parts themselves.
Visit our to explore our full capabilities: ssprecision.com.cn
Services (tooling design & manufacturing)
- Stamping Dies Manufacturing – high-volume metal stamping with Progressive die Die Stamping & Tooling spare parts manufacturing and Transfer Stamping Dies
- Injection Molding – custom plastic molds including Over Molding & Insert Molding and Liquid Silicone Rubber (LSR) Molding
- Green Mold – eco-friendly molded components, Micro Molding – microscopic medical precision parts
Products (end-use parts & spare components)
- Stamping Die – complete stamping tooling
- Injection Mold – complete injection tooling
- Tooling Spare Parts – punches, inserts, ejector pins, Robotics Spare Parts – precision automation spares , Ball Screw Repair Kits – replacement kits for motion systems
- Machine Parts – general precision machine components
FAQ
- Q: What makes SSPrecision different from other tooling manufacturers in Dongguan?
SSPrecision combines IATF 16949 automotive-grade certification, ±0.002 mm tolerance capability, in-house DFM and CMM inspection, and 2+ million cycle tool life—all under one roof. The company has served OEMs across 50+ countries since 2008. - Q: What tolerances can SSPrecision achieve on stamping dies?
SSPrecision achieves ±0.002 mm (±2 µm) on critical die features, verified on Zeiss and Mitutoyo CMMs. CNC milled parts are held to ±0.005 mm. - Q: What materials are used in SSPrecision stamping dies?
Certified tool steels including D2, SKD11, H13, and Cr12MoV, with vacuum hardening and PVD coating for extended tool life. - Q: What certifications does SSPrecision hold?
ISO 9001:2015 and IATF 16949:2016. Full CMM dimensional reports, SPC monitoring, and material certification traceability are provided with every die. - Q: What is the typical lead time for a stamping die from SSPrecision?
Sample dies in 15–25 days; production tools in 30–45 days depending on complexity and cavity count. - Q: How long does SSPrecision stamping die last?
Documented tool life exceeding 2 million cycles with proper maintenance. - Q: What industries does SSPrecision serve?
Automotive/EV, electronics, medical devices, aerospace, industrial machinery, and energy sectors.
Read More – Intelligence That Protects Your Production Line
- Quality Assurance Review: Stamping Die Products Tooling – A stamping die is only as reliable as the quality system behind it—here’s the 6-stage QA framework covering DFM, material verification, ±0.002 mm machining, CMM inspection, and PPAP documentation that delivers 99.7% quality acceptance and 2M+ cycle tool life.
- Margin Optimization: Sustainable Injection Mold Design OEM – Conformal cooling, hot runners, all-electric machinery, and closed-loop recycling cut energy use 52%, material waste to under 3%, and per-part cost by 22%—here’s the sustainable mold design framework for margin protection.
- CNC Wire EDM Machining Services Shop: Applied Proof Point – Wire EDM cuts hardened materials up to 65 HRC with zero mechanical force, holding ±0.005 mm tolerances and Ra 0.2 µm finishes—here’s a case study showing how it slashed scrap from 12% to under 1% and eliminated secondary operations.

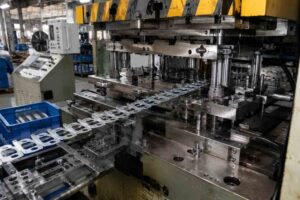

- Technical Framework: Multi-Station Progressive die Metal Forming – Progressive dies stack blanking, piercing, bending, and forming into one tool running at 1,200 SPM with ±0.002 mm tolerance—here’s the technical framework for multi-station die design, station sequencing, and automation integration.
